EPS CONCRETE PANELS: Production Introduction

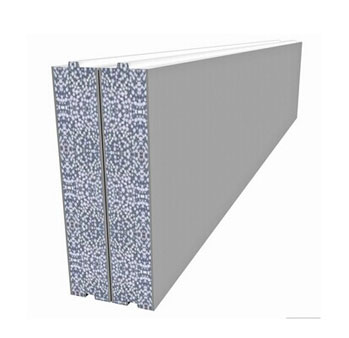

EPS light weight sandwich concrete panels are high grade panels with EPS mortar as core material, calcium silicate board as the surface material and properly mixed with fly ash, slag and additives. Products size: length 2440 mm, width 610mm,thickness 60-180,(size and thickness can be adjusted).The product is of structural function, waterproof and thermal insulation performance, mainly used as building wall portion .for more please email us rs@rihongfa.com

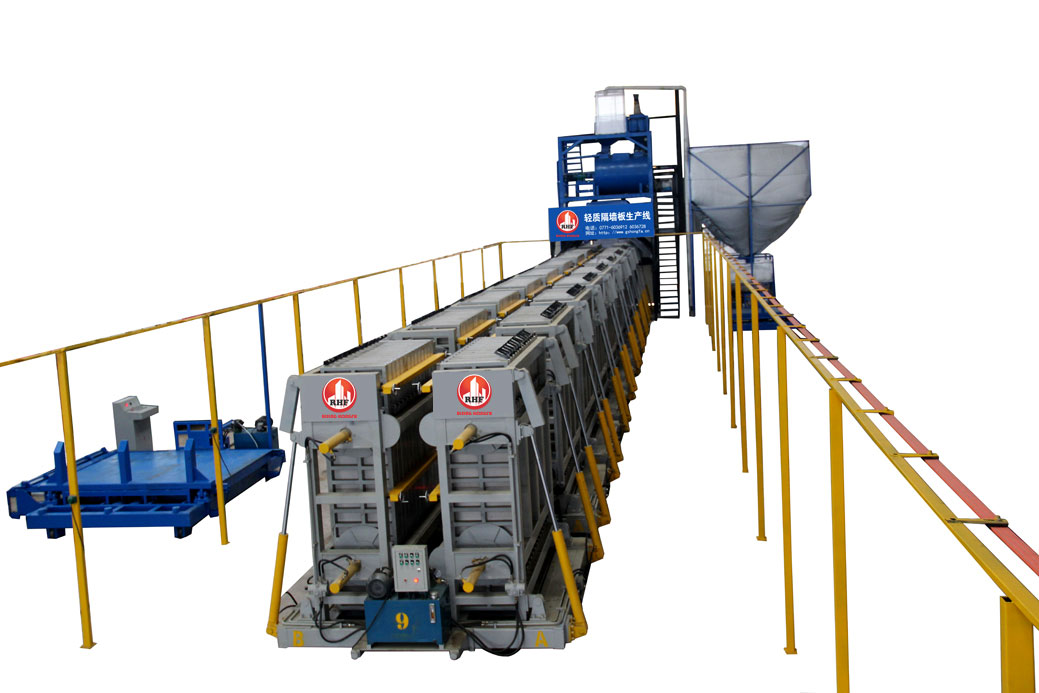

Automatic vertical type Plant: high output, fewer workers required. Technical data

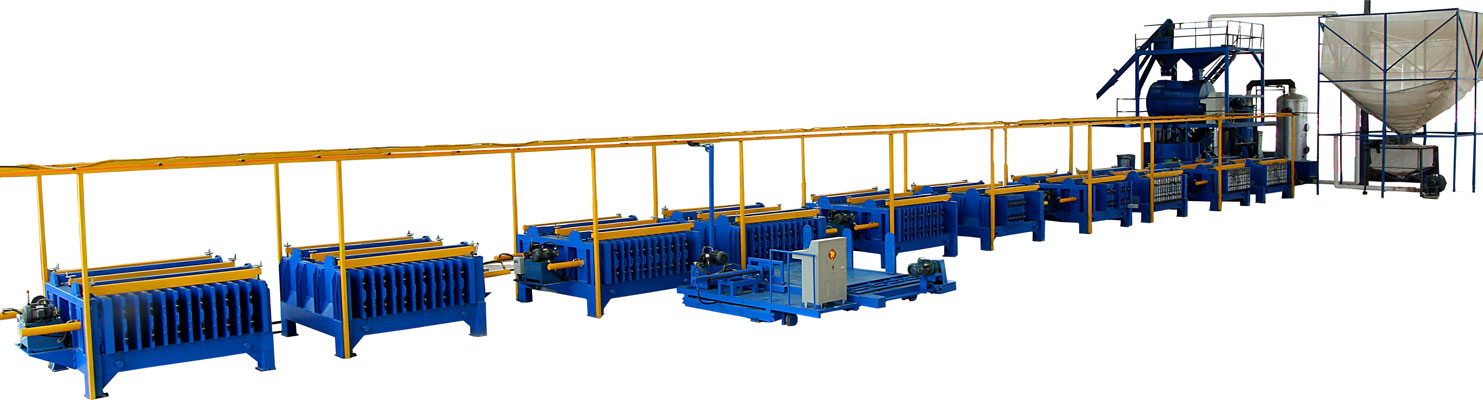

Horizontal type Plant: high output, fewer workers required. Technical data

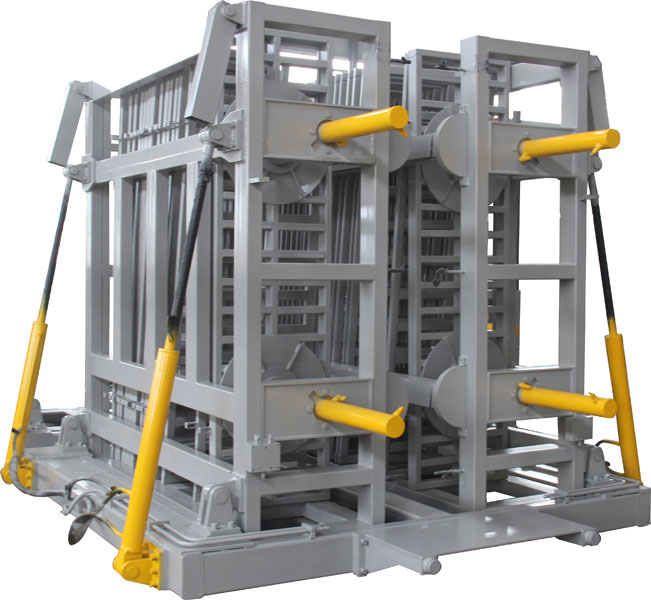

Automatic Vertical Module Car

Automatic Vertical double opening molding machine combines the horizontal wall machine stripping, patented simple and lightweight, efficient features saves lot of time and money in operation. Latest technology.

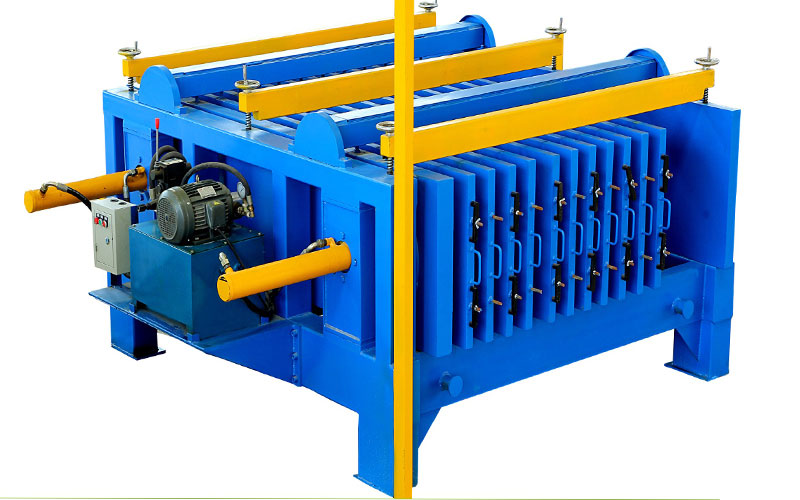

Horizontal Molding Car

Horizontal molding machine with hydraulic opening and closing of the mold. Perfect size, high-precision CNC cutting equipment, installed more efficient stripper

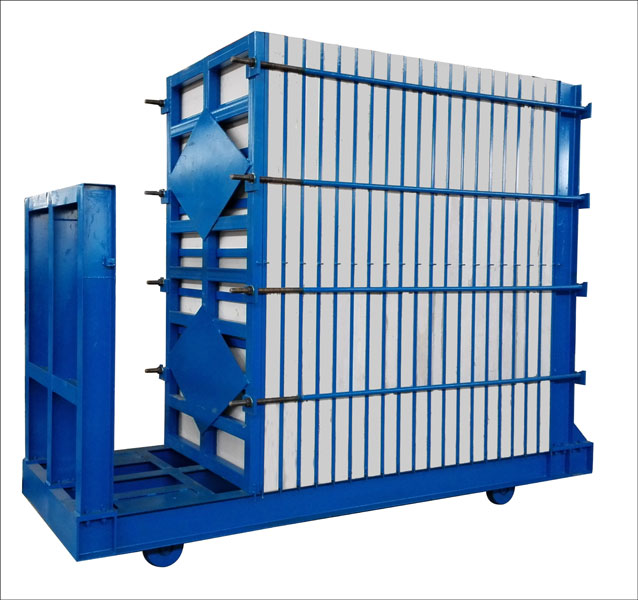

Manual vertical type Molding Car:
Manual operation, three times more output than horizontal type molding car.
Technical data

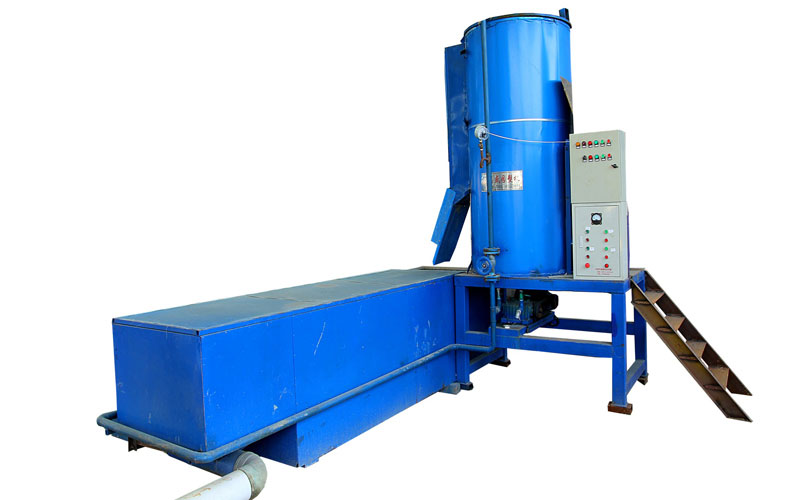

EPS Foam Particle machine

EPS foam particles advance machine is an important equipment in lightweight composite panel production line. This works with boilers with advance technology to process and expand polystyrene into lightweight polystyrene particles (EPS).

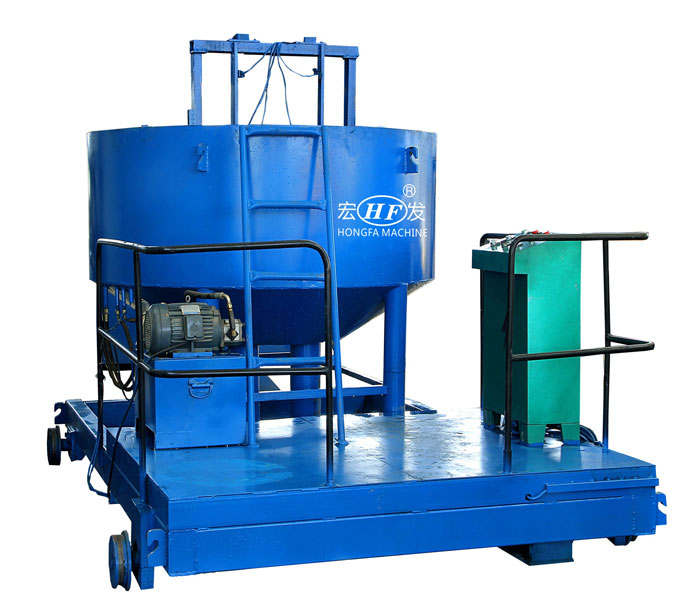

Mobile mixing and Mold filling machine

This is heavy dutyMobile mixing and Mold filling machine which works on rails. The machine keeps the EPS mortar moving and mixing to avoid settling and automatically discharge the same into molds to give perfect feeding.

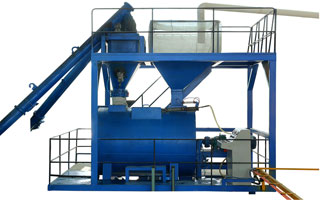

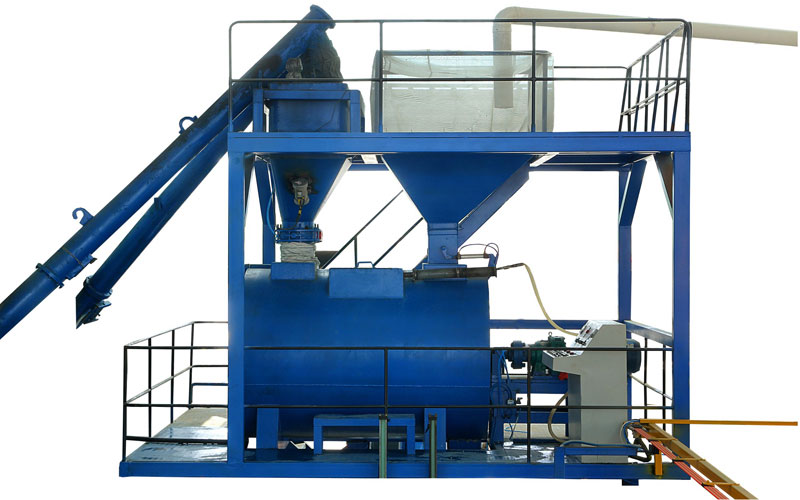

Mixing station

This is the heart of the EPS panel plant which is a master mixer and discharge station. It receives the cement, sand / fly ash and EPS granules from silos and mix the same automatically after fully weighting in a fixed ratio. This is computerized control Works as per feeding information. It keeps the mortar ready and later feed the Vertical mold car automatically.
